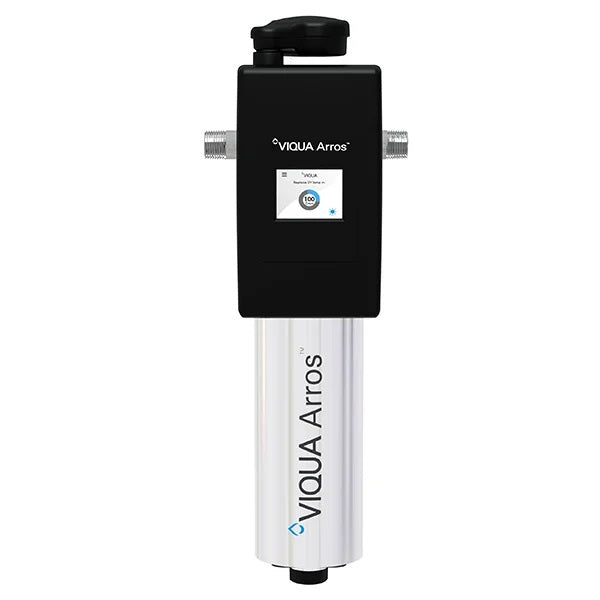

Viqua Arros 15 - Premium UV Water Disinfection System - Flow Rate up to 3.4 m³/h

Viqua Arros 15 Whole House UV Water Disinfection System – flow rates up to 3.41 m3/h  : 15 gpm suited to larger homes and commercial situations.

Ideally suited to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli and faecal coliform.

Arros 15 Specification:

Max Flow Rate : 15 gpm (56.8 lpm) 3.41 m³/hr

Lamp Life: approx 12 months

Controller Dimensions:  26.67 cm x 12.7 cm x 16.51 cm
Chamber Dimensions: 42 cm x 10.16 cm

Shipping Weight : 6.8 kg

Voltage : 100-240 V 50/60 Hz

Power Consumption (watts) : 46

Maximum Operating Pressure : 8.62 bar (125 psi)

Ambient Temperature : 2-40°C (36-104°F)

Lamp / Quartz / Sleeve /Controller : code VA15LU

Inlet/Outlet Port Size : ¾" MNPT

Benefits:

• Space Efficient :   The improved dose efficiency results in a more compact UV chamber and lamp.
• Reduced Installation Complexity
  • The Tidal™ chamber aligns the inlet and outlet ports on a single plane, saving time and material.
  • PolyProtect™ shield blocks UV light so the Arros UV can plumb directly to PEX and other polymer materials.
  • System mounting is simplified with an elongated steel bracket.
• Ease of Maintenance:
  • The all-in-one design of the VIQUA Arros lamp unit is easier to handle.
  • Threaded plug for quick, clean draining.
  • Easy-to-navigate LCD touchscreen to identify replacement part and dealer contact information.
• Optimized Treatment Performance
  • Equipped with Stream™ technology which allows for more accurate in-lamp usage measurement.
• Application: Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications.

Warranty:

Seven year warranty on the stainless steel reactor chamber
One year warranty on UV lamps
Five year warranty on all other components.

Downloads

Viqua Arros Brochure

Viqua Arros Data Sheet

Viqua Product Manual
