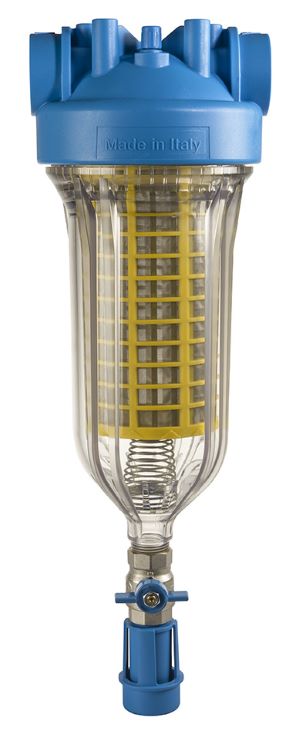

Hydra Single Big Self-Cleaning Water Filter - 1.5" ports
Hydra Single Big Self-Cleaning Water Filter - 1.5" ports
Details
The Hydra Big Self-Cleaning Filter with backwash system gives you maximum protection thanks to its high level performance.
Cleaning operations are carried out manually by the valve at the filter bottom opening up: in just a few seconds, the reverse flow of the water ejects all the impurities deposited on the cartridge surface, restoring the filter to its initial conditions.
The effectiveness of the self-cleaning process is guaranteed by the special anti-backflow device which prevents water from going back to the filter.
HYDRA BIG is equipped with two special washable filtering cartridges: RAH BIG (stainless steel mesh) of 90 microns.
The maximum flow rate is 15000 l/h with 1.5" BSP inlet & outlet connections.
Technical Features
Suitable for RAH BIG and RLH BIG cartridges.
1” and 1”1/2 IN/OUT connections in BSPP and NPT plastic
Head: reinforced polypropylene
Bowl: PETO-ring: silicone.
Drain ball valve for self-cleaning. Equipped with prevention device from pollution by backflow
1”1/2 versions maximum flow rate: 15000 l/h (66 gpm)
Maximum operating temperature: 45°C (113° F)
Maximum operating pressure: 8.3 bar (120 psi)
Minimum operating pressure: 1.8 bar (26 psi)
Minimum flow rate for an effective backwash: 2000 l/h (RAH BIG), 2400 l/h (RLH BIG)
